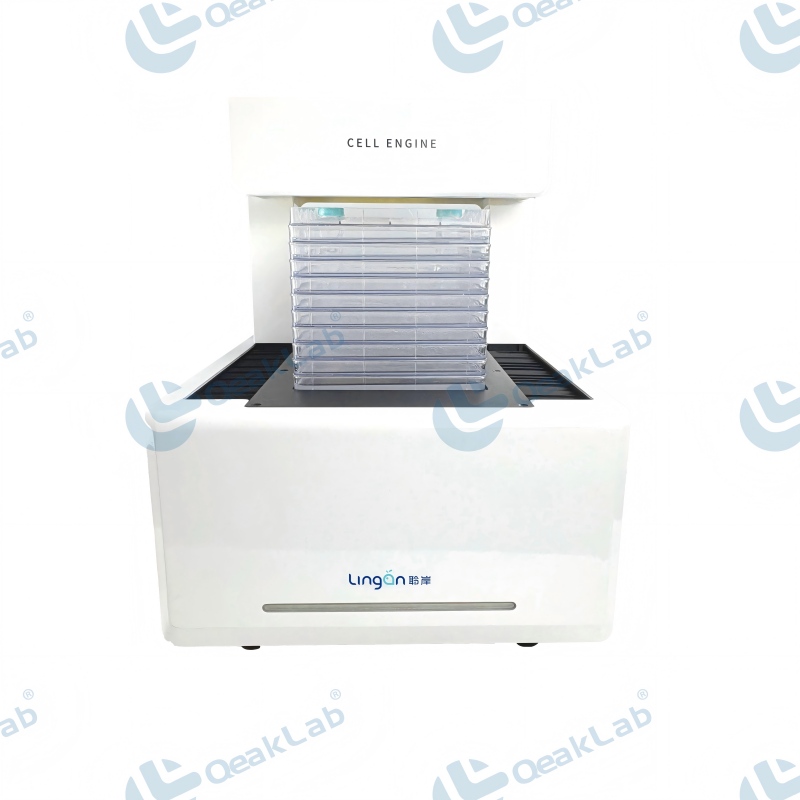

LA635 – Large-Scale Cell Culture Observation Microscope

Short Description:

Large-Scale Cell Culture Observation Microscope is designed for large-scale cell culture, biopharmaceuticals and cell biology research. It enables real-time, non-destructive observation of culture systems, serving as a core device for high-throughput cell experiments.

Equipped with a high-resolution optical system and long working distance objectives, it clearly displays cell morphology, proliferation and differentiation. Supporting rapid multi-field switching and image acquisition, it is compatible with various large-scale culture vessels. With constant temperature and anti-vibration design to avoid interfering with cell growth, it features simple operation, balancing precision and efficiency for research and production.

Please contact us for free sample and price list

Product Detail

FAQ

Our Workshop

Features

1.New International Standard Infinity Optical System: 60mm parfocal distance, delivering higher resolution and longer objective working distance；
2.Stable Frame Design: Weighs ≥36 kg; body features splash-resistant construction；
3.Focusing System: Vertical travel range: 8mm upward, 3mm downward. Fine adjustment: 0.1mm per rotation; coarse adjustment: 5mm per rotation. Adjustable torque with user-definable upper focus limit；
4.Objective Turret: ≥5-position objective turret, includes protective cover；
5.Observation Modes: Brightfield and fluorescence systems available (two models to choose from)；
6.LED Illumination: Exceptionally long service life of ≥60,000 hours. Built-in fly-eye lens ensures uniformly bright illumination across the field of view at all magnifications；
7.Condenser: Long working distance condenser with N.A. ≥0.30; adjustable working distance from 75mm to 720mm; includes universal phase contrast module；
8.Large Combined Mechanical Stage: Features pulley design, providing stable support for large samples like cell factories and enabling smooth field of view adjustment.

	Item	Description
Standard Configuration	Main Unit	ncludes body with transmitted light illumination column, 60,000-hour long-life LED light source, fly-eye illumination lens assembly, and 5-hole objective turret.
	Eyepieces	10X eyepieces, FOV 22, with independently adjustable diopters on both eyepieces.
	Primary Observation Objectives	4X,10X,20X,40Xapodized phase contrast objectives, reduce haloing at cell and nuclear edges.
	Secondary Observation Objectives	4X plan achromatic objective.
	Stage	Large sliding stage, enables observation of the entire cell factory plane.
	Condenser	Electrically powered Lifting condenser, allows for stepless vertical height adjustment.
	Power Supply	220V
	Weight	36kg
Optional Accessories	Camera	Color, 20 Megapixel, resolution 5440x3648
	Computer	Intel i5 processor, 8GB RAM, 1TB HDD, USB 3.0 interfaces.
	Validation	3Q Validation Service
